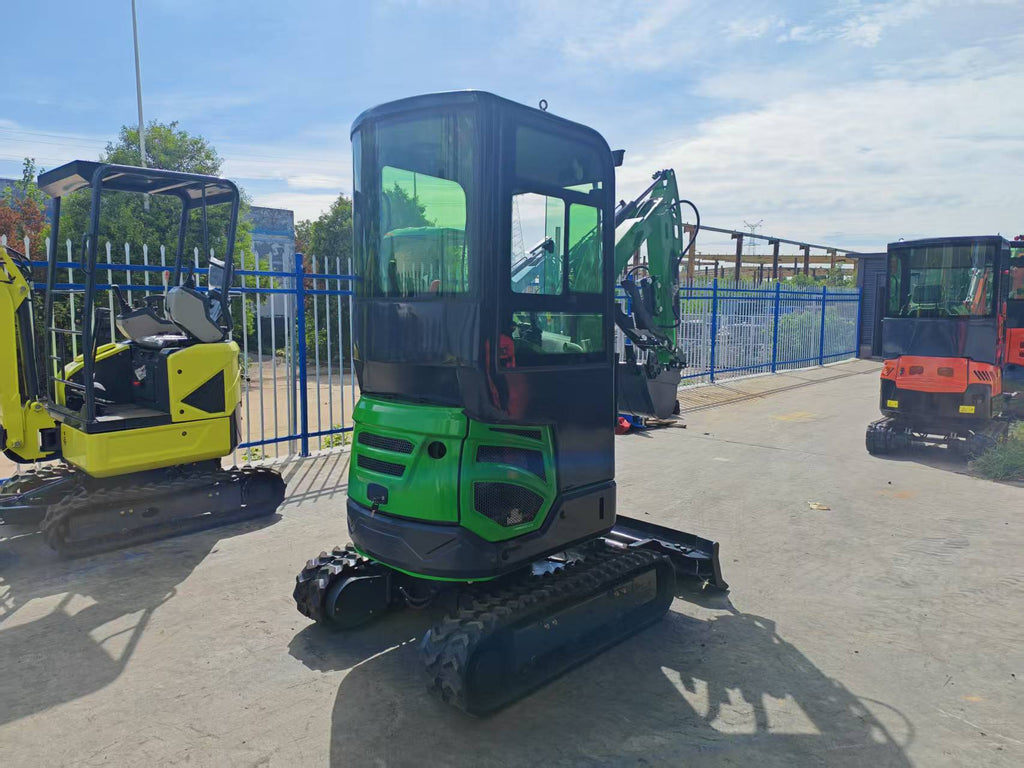

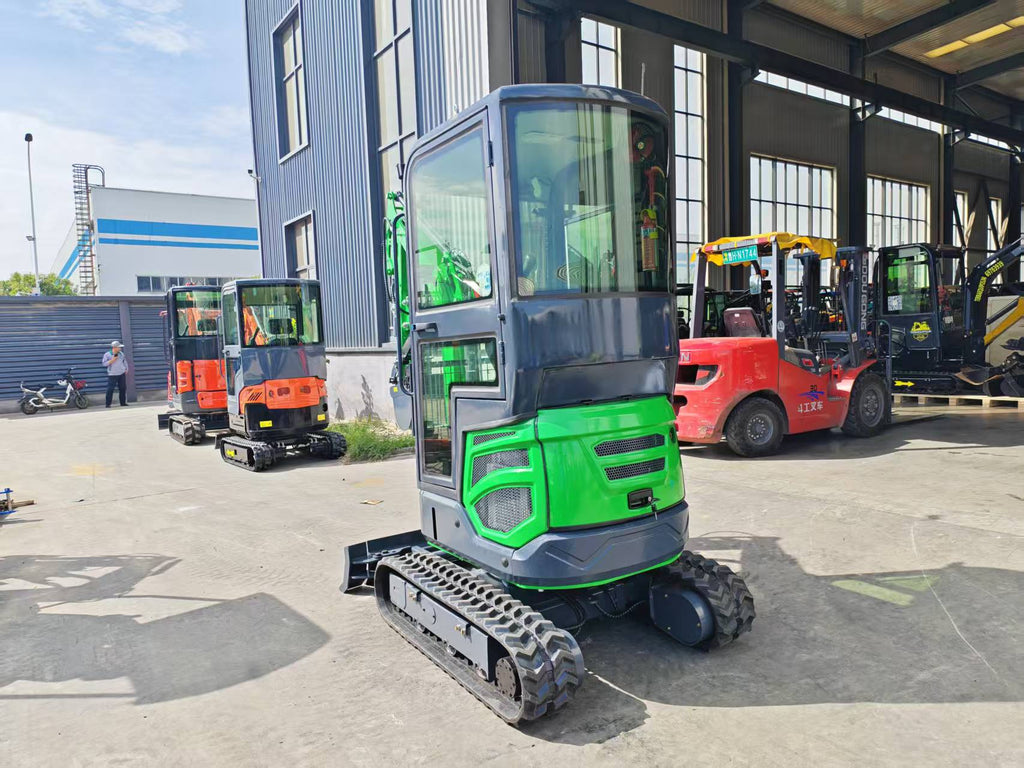

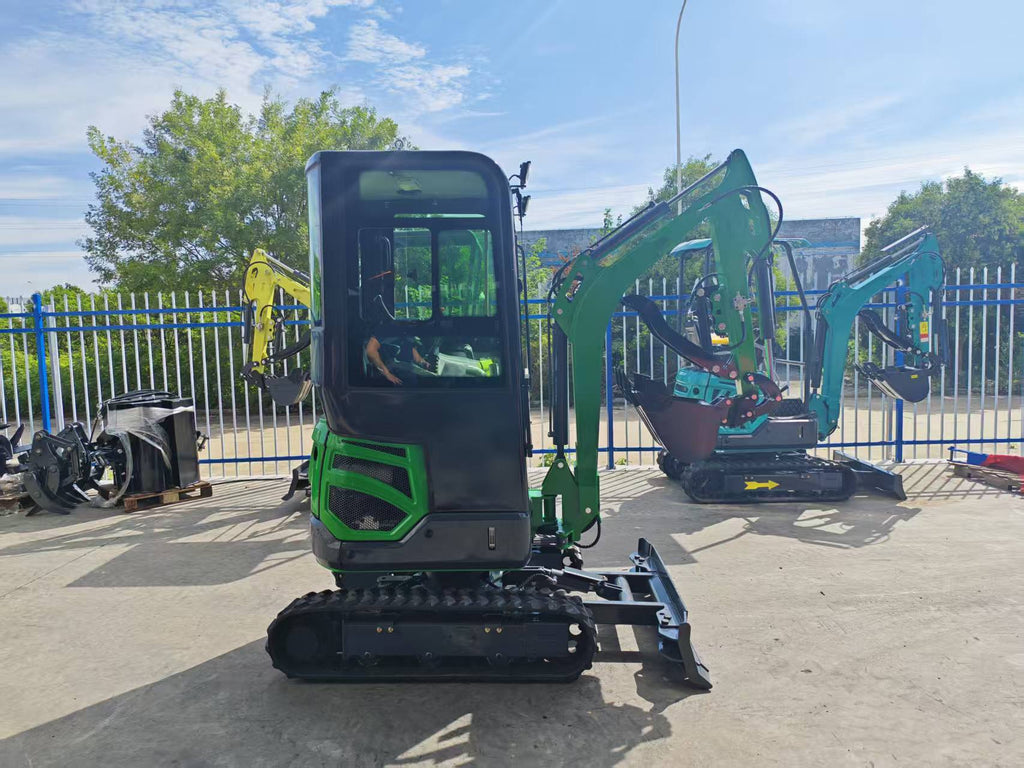

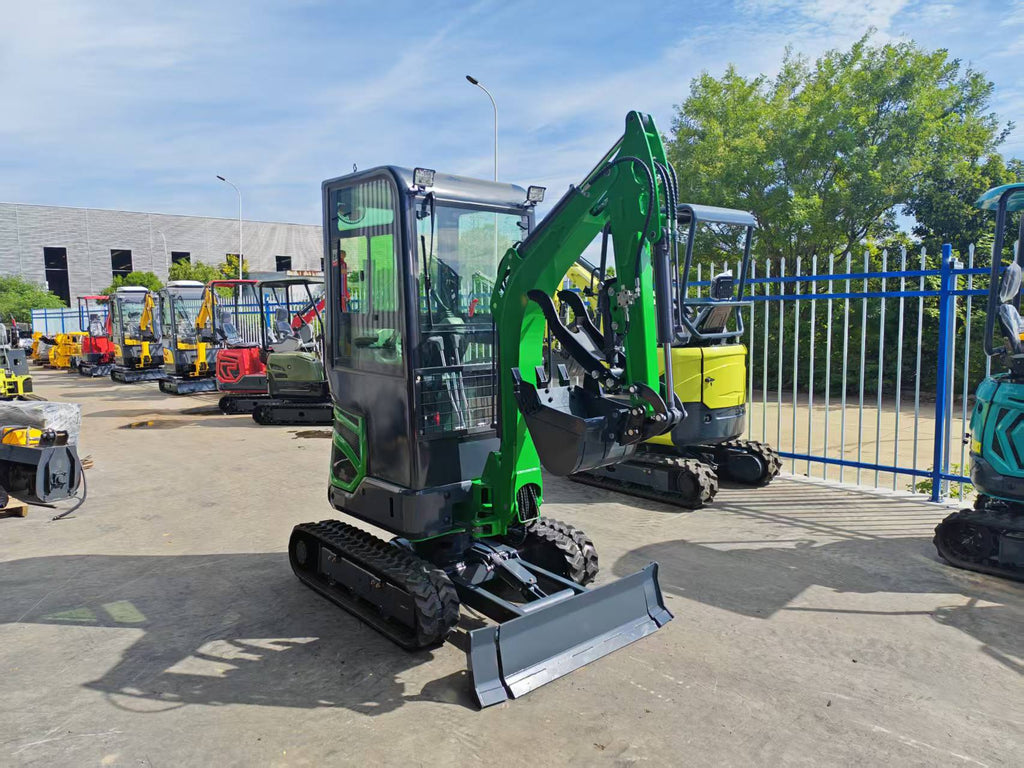

Mini Excavadora HN18
Mini Excavadora HN18
|
Specification |
|
Dimensions (mm) |
||
|
Engine |
|
Overall length |
3210 |
|
|
Model |
KUBOTA D722 |
|
Ground length (transportation) |
1420 |
|
Type |
Three-cylinder direct injection |
|
Overall height (to top of boom) |
1340 |
|
Displacement (L) |
0,719 |
|
Overall width |
950/1200 |
|
Rated Power (kw/rpm) |
10.2/2500 |
|
Overall height (to top of cab) |
2230 |
|
Hydraulic system |
|
Counterweight ground clearance |
445 |
|
|
Type |
Gear Pumps |
|
Minimum ground clearance |
150 |
|
Rated working flow (L/min) |
25 |
|
Tail swing radius |
640 |
|
Digging force |
|
Wheelbase |
1100 |
|
|
Arm digging force(kN) |
5,5 |
|
Standard track shoe width |
200 |
|
Bucket digging force(kN) |
9 |
|
Bucket width |
430 |
|
Travel system |
|
RS Boom right swing |
49.7° |
|
|
Travel speed (km/h) |
2,5 |
|
LS Boom left swing |
62.7° |
|
Traction force (kN) |
15 |
|
Working range (mm) |
|
|
Gradability ° |
30 |
|
Max. digging height |
2800 |
|
Rotary system |
|
Max. dumping height |
1850 |
|
|
Max.rotation speed (r/min) |
9,5 |
|
Max. digging depth |
2100 |
|
Brake type |
Mechanical brake |
|
Max. digging radius on ground |
3550 |
|
Machine weight |
|
Min. swing radius of working device |
1540 |
|
|
Machine weight (kg) |
1300 |
|
Max. lifting height of bulldozer |
150 |
|
Bucket |
|
Max. cutting depth of bulldozer |
220 |
|
|
Bucket capacity (㎥) |
0,04 |
|
|
|
|
Oil capacity |
|
|
|
|
|
Fuel tank capacity (L) |
12 |
|
|
|
|
Cooling system (L) |
5 |
|
|
|
|
Engine oil volume (L) |
3,2 |
|
|
|
|
Hydraulic oil tank capacity (L) |
15 |
|
|
|
